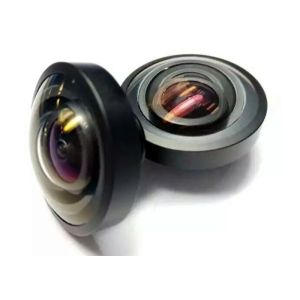

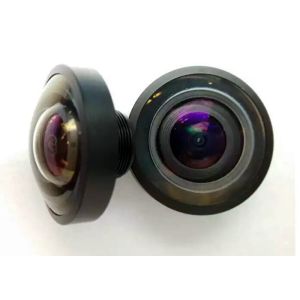

1/3" 1/4" 0.92mm 5Megapixel S-mount M12 225Degree Wide Angle Fisheye Lens for OV4689/OV5648
Ask Latest Price
Model Number :13092MPF
Place of Origin :China
MOQ :100 pcs
Payment Terms :T/T, Western Union, MoneyGram, Paypal
Supply Ability :Samples available
Delivery Time :2-7 work days
Packaging Details :Standard
Camera Lens :CCTV Video Lens
Optical Lens :225degree S mount Fisheye Lens
TV Lens :board lens for OV5648/OV4689
Material :7G+1IR-Cut
Brand Name :CCOM LENS
more
Contact Now

Add to Cart
Find Similar Videos
View Product Description

1/3" 1/4" 0.92mm F2.2 5Megapixel S-mount 225Degree Wide Angle Fisheye Lens for OV5648/OV4689, fisheye lens for 360VR/panoramic cameras

Model: 13092MPF
SENSOR SIZE 1/3" OV4689, 1/4" OV5648
MAX IMAGE CIRCLE Φ2.7mm(OV4689), Φ2.72mm(OV5648)
FOCAL LENGTH(EFL) 0.92mm
F.O.V. (D*H*V) OV4689: 214°*214°*214°; OV5648: 225°*225°*225°
RESOLUTION 5MP
APERTURE F2.2
OPTICAL DISTORTION OV4689 <-144%; OV5648 <-169%
MOUNT M12X0.5
B.F.L.(O) 2.25mm
B.F.L.(M) 1.26mm
T.T.L. 16.50mm

R.I. OV4689 >80.2%, OV4689 >75.8%

C.R.A. OV4689 <18.79°, OV5648 <18.62°
LENS CONSTRUCTURE 7G+IR

DIMENSION Φ25X15.24mm

Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional
